Bizerba GLM-E maxx 40 afvejning og prismærkning

Area of Use

  • entry-level class for small throughput
  • with internal user terminal for up to 50 packages per minute
  • can be used with manual feed, but can also be integrated into existing automatic production lines for fully automatic weigh-price labeling

Highlights

  • Output up to 50 packages/minute
  • Thermal direct and thermal transfer print
  • Printing of UNICODE fonts
  • 2GB memory on board for article and layout data
  • Program updates, line backups, backup and service printouts are possible with the external USB port
  • The internal USB port can be used for logging of process data, e.g. for statistical evaluations.
  • Printing and processing of any one-dimensional and two-dimensional standard barcodes, among other things data matrix and QR code
  • Easy change of label roll

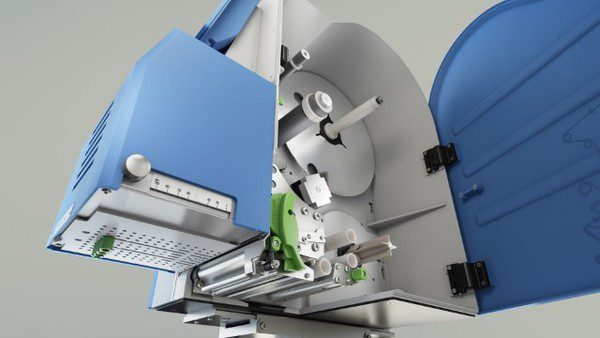

  • Servicing of printer unit without tools (e.g. when replacing the thermal bar, pressure roller).
  • Scanner connection
  • Remote service
Specifications Facts Details
Weighing ranges 6 kg

3/6 kg
12 kg

Verification scale interval 2 g (optionally 1g), min. FPV 500/150 g
Verification scale interval 1/2 g, min. FPV 150 g
Verification scale interval 2 g, min. FPV 500 g
Weighing belt dimensions 300 mm x 300 mm (W x L)
300 mm x 400 mm (W x L)
for 3/6 kg, 6 kg, 12 kg scales

for 3/6 kg, 6 kg, 12 kg scales

Printing technology Printing process
Resolution
Print width
Print speed
Label output
Thermal direct (optionally thermal transfer)
8 dot/mm (optionally 12 dot/mm)
80 mm (optionally 104 mm)
max. 250 mm/s
120 mm
Labeler Label size

Label roll

Thermal transfer ribbon

min. W 30 mm x 30 mm to W 100 mm x 100 mm (depending on applicator type, further dimensions available as special version)
Core diameter 76 mm (optionally 40 mm)
Outer diameter 300 mm
Core diameter 25,4 mm
Outer diameter 81 mm
Labeler setting Heigh adjustment
Transverse adjustment
Manual
Manual
Labeling capacity max. 50 ppm Depending on device version, weight, package type and label size

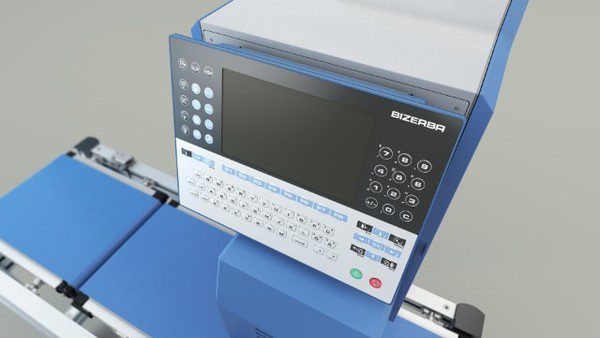

Display / operating panel Operation with keyboard
color display 7″
12″ LCD display with touch screeen functions (Optionally)
Labeling technology Air-jet labeler
Piston applicator
Compressed air supply 6 bar
Compressed air supply 6 bar
Package size min. 40 mm x 40 mm x > 1 mm (W x L x H)
max. 300 mm x 300 mm x 250 mm (W x L x H)
max. 300 mm x 400 mm x 250 mm (W x L x H)
Depending on weighing conveyor dimensions
Barcode versions all common barcode versions EAN/UPC 8, EAN/UPC 13, EAN/UPC 128, Code 2/5 int., Code 39, Code 128, GS1-128, PDF 417, PDF 417 mit AI, GS1 DataBar Omni, GS1 DataBar, Data Matrix, QR-Code
Supply voltage 230V/ 50 cycles One phase
Operating temperature 0°C to +40°C Standby to -10°C
Humidity 20-90%, non-condensing
Protection class IP 20
IP 54
Printer
Scale, transport, control cabinet
Memory 2 GB Compact flash card

Options

  • Thermal transfer unit
  • Print width 104 mm
  • Applicators: Air-jet, piston
  • Rejection function up to 2 kg
  • 12″ color touch display
  • Rotation and alignment station for products of up to 6 kg
  • Alignment rails
